Toledo Industrial Sewing Machines

Cowboy CB-8810 Post Bed Sewing Machine

The Cowboy CB-8810 post bed leather sewing machine

Gear driven roller feet
Specifications and Pricing

Model: CB-8810

Post height: 7"

Gear Driven Top Feed Roller Foot

Gear Driven Bottom Feed Roller Feed

Needle Feed

Maximum Roller Foot Lift: 7/16"

Max Sewn Thickness: 5/16"+

Needle System: 135x8 (134LR); #10-#23

Thread Sizes: #33 - #138

Push button stitch regulator

5-30 Stitches Per Inch

Forward stitching only

Top loading Pfaff style bobbin

Max Speed: 2000 spm

Semi-Automatic Lubrication

Adjustable speed servo motor

3:1 speed reducer

Steel K-legs industrial table

Long neck, hi-intensity flex lamp

CB-8810: $2795.00, plus shipping

CB-8810R, with reverse: 2995.00, plus shipping

The Cowboy 8810 post bed machine is a high quality lockstitch single needle, needle feed machine with a positive feed roller presser foot and a semi-automatic lubrication system. The machine is designed to for stitching very light to medium heavy leathers, boot tops, shoes and upholstery fabrics where quality stitch formation is of the utmost importance. All bobbins, bobbin cases, hooks, needle plates and feed wheels are industry standard and interchangeable with readily available replacement spare parts.

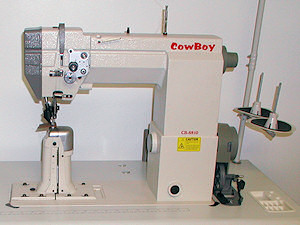

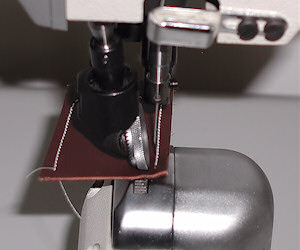

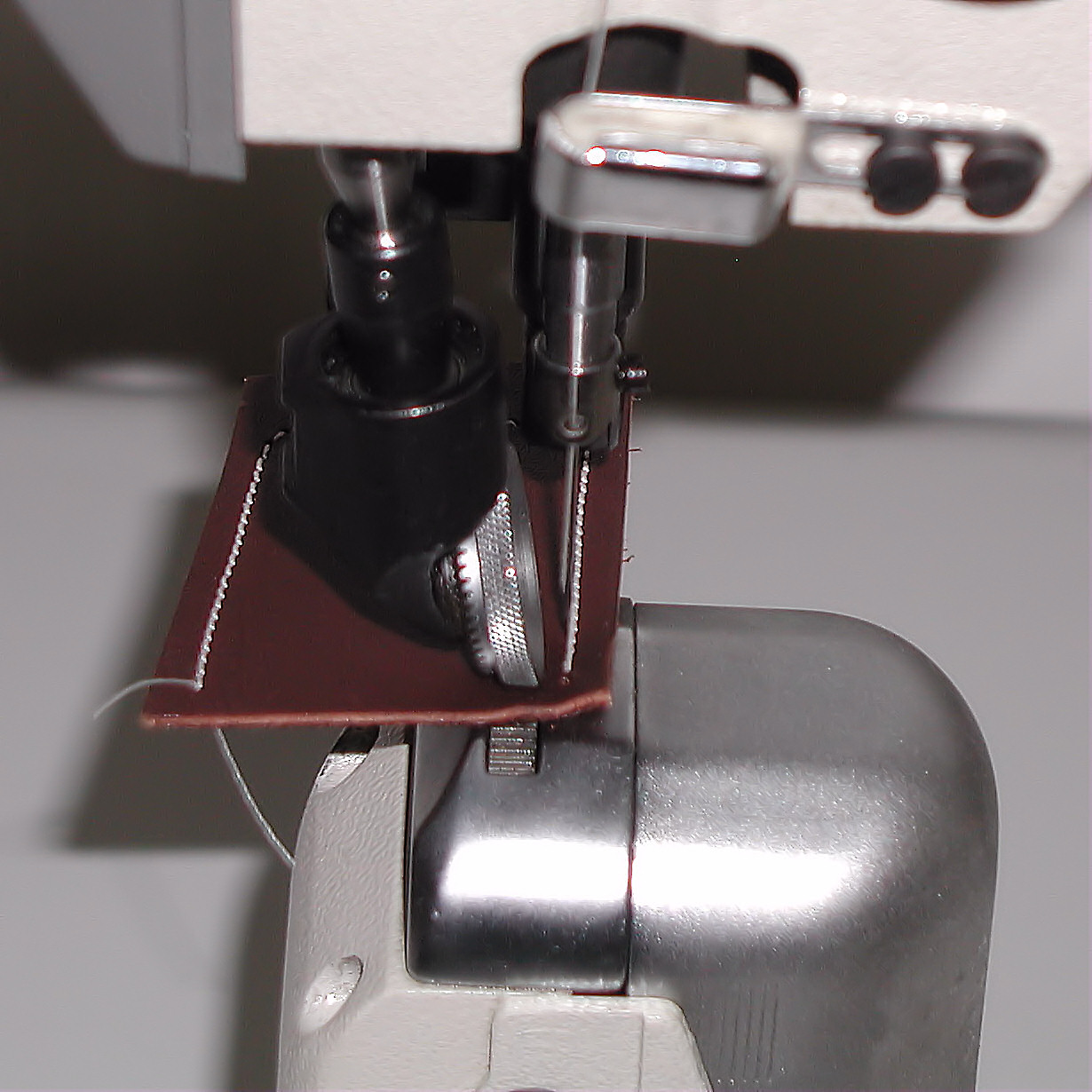

Post style leather sewing machines are used by hat, shoe, moccassin, and boot makers world-wide. If you have a pair of cowboy boots with fancy stitched patterns on the uppers, they were likely sewn on a post machine. The Cowboy CB-8810 post machine, pictured here, is unique in that it uses a triple feed combination of gear-driven upper and lower rollers (see photo on left), plus a moving needle (needle feed). This system provides positive drive and control for any material being sewn. This triple drive guarantees constant stitch lengths, despite varying thicknesses or densities of leather being sewn.

The Cowboy CB-8810 post machine has 7 inch high post. It is capable of sewing up to 5/16" (20 ounces) of light to medium temper leather, with up to #138 bonded nylon or polyester thread.

Every new CB-8810 purchase comes complete with a powerful servo motor and speed reducer, mounted on an adjustable height K-legs work stand, with standard wooden table. A flex-lamp, bobbin winder, heavy duty thread stand and accessory drawer is included. Also included are four bobbins and one pack of 10 needles (to match your preferred thread size).

See our complete line of Cowboy sewing machines

Call us toll free, at: 866-362-7397 for more information, or to place an order.
