The Cowboy Outlaw Hand Cranked Sewing Machine

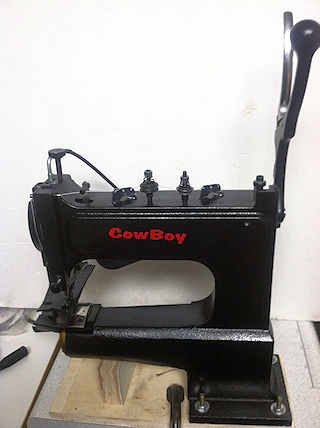

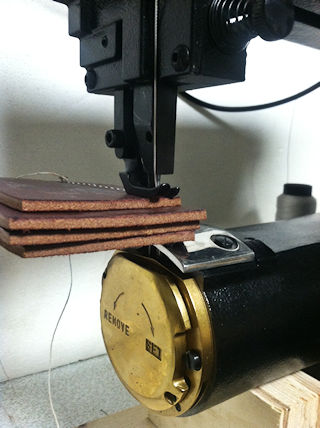

The Cowboy Outlaw is a handcranked (forward and backward), jump foot, needlefeed, leather sewing machine (it also sews nylon webbing and Bio-plastic). It has over 3/4 inch lift and sews over 5/8 inch thickness of real leather, with a maximum stitch length of about 3.3 stitches per inch. The bottom photo shows the Outlaw sewing 4 layers of 10oz (40 oz = 5/8") leather.
The Outlaw uses bonded nylon or polyester thread sizes from #69 through #346 thread (and possibly #415). It is made of cast iron and steel, with a 9 inch long x 3.15 inch wide arm (similar to the motorized CB3500) and uses the same needles (794S), shuttle race and large bobbins as the larger Cowboy Stitchers. It also takes the same roller edge guide as it's larger brothers.
This machine sews from one stitch at a time up to 100 per min. Built of solid cast-iron, instead of soft metal, it has all strong steel internal parts for years of trouble free sewing.
Weighing in at 50Lbs, the Outlaw is portable enough to take to leather shows, to use it for tack and saddle repairs. Plus, it's great for sewing gun belts, handgun holsters and knife sheaths too!
Check out our videos page to see the Cowboy Outlaw in action.
The Cowboy Outlaw is reasonably priced at just $1395.00, plus shipping. Call now to order yours!
