Cowboy CB3200 Heavy Leather Sewing Machine (Patent Pending)
Model: CB3200
From $2195.00 USD, plus shipping
Arm Length: 10.5"
Arm Diameter: 3 9/16"
Maximum Foot Lift: 5/8""
Max Sewn Thickness: 1/2"
Needle: 7x3 or 794: #19-#27
Thread Sizes: #69 - #346
Bobbins: 7/8" x 1" large capacity
Max Speed: 800 rpm
Max Stitch Length: 2 per inch
Reverses into same holes
High torque servo motor, with front panel speed control knob
Ball bearing 3:1 speed reducer
U shaped cut-out table, on casters
Adjustable Pedestal stand upgrade $150.00
Removable flatbed conversion table attachment: $95
Magnetic mount, LED flex lamp
Accessories & upgrades available
Limited Lifetime Warranty
Cowboy industrial sewing machines are built as tough as tanks and are capable of sewing thick leather, cloth, webbing, bioplastic and other materials, with heavy thread.
Capacity:

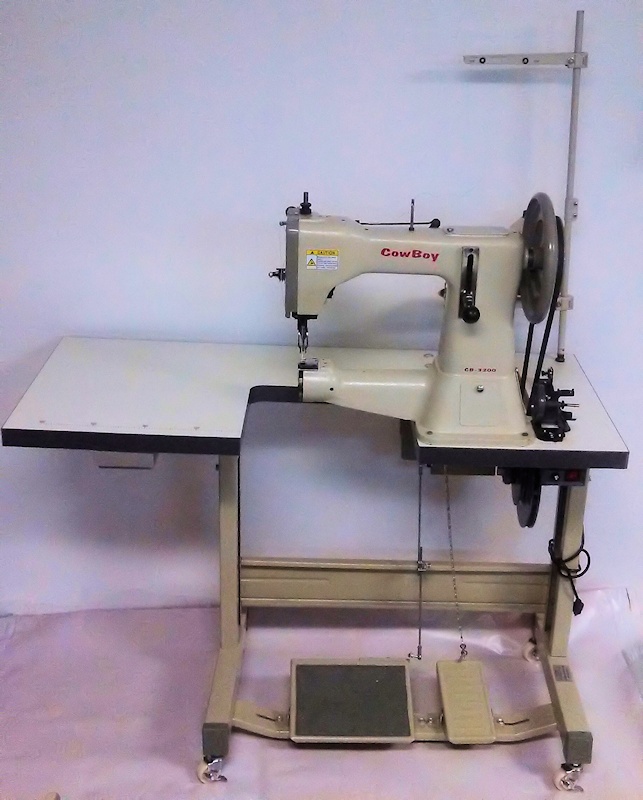

The Cowboy CB3200 leather stitcher, pictured here (click here for close-up of machine head), is capable of sewing up to 1/2" of saddle leather, with up to #346 bonded nylon or polyester thread.
Mechanism:
It has a cylinder arm of 10.5 inches in length; ideal for sewing belts, collars, tack, holsters, cases and saddle bags. The feed is performed by a compound, triple feed walking foot, which ensures that all layers will move together. The presser feet, known as Harness Feet, are made of stainless steel.
The CB3200 uses the same bobbins, feet and needles as the CB3500, 4500 and 5500 models. The primary difference from those models is the U shaped table that you can sit at and the lesser sewing thickness capacity. The table size is 22"W x 48"L and the top is 33" off floor. The sewing surface height is 37" from the floor.
Included:
Every new CB3200 purchase comes complete with a motor and table and narrow double toe harness presser feet.
Also included are four bobbins and one pack of 10 needles (to match your preferred thread size).
