Toledo Industrial Sewing Machines

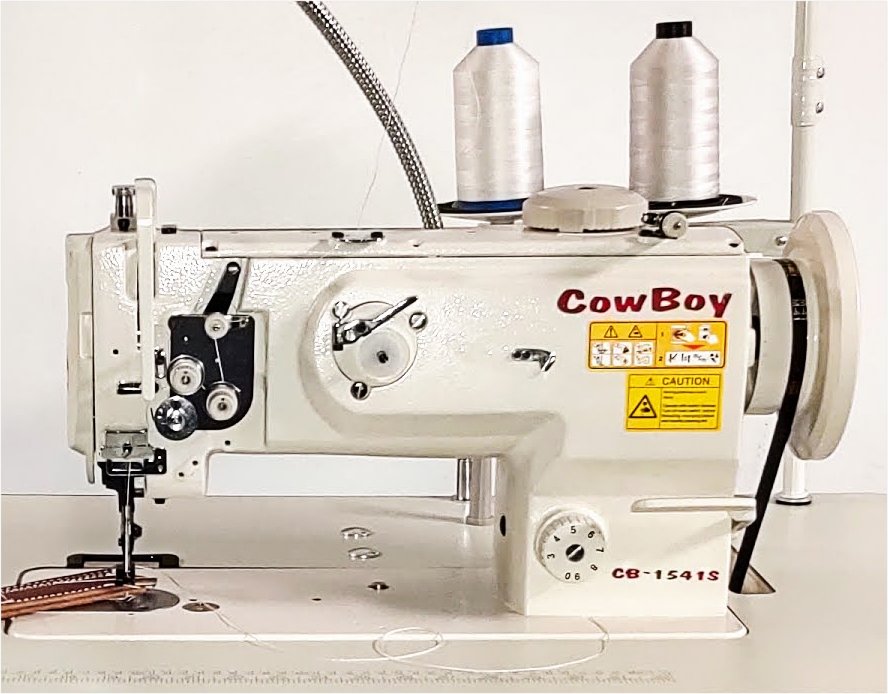

Cowboy CB-1541s Compound Feed Walking Foot Machine
Model: CB-1541s
Flat bed Length: 10.4"
Maximum Foot Lift: ~5/8"
Max Sewn Thickness: 3/8" †
Needle: #135x16/17: #12-#24
Thread Sizes: #46 - #207
Bobbin: Large M style
Max Speed: 2500 spm
Max Stitch Length: 2.8 per inch
Reverse lever for backtack
Powerful servo motor with a 2" pulley
Industrial table on K-legs stand
Long neck gooseneck flex lamp
Includes 1 pack of needles and 4 bobbins
Accessories & upgrades available
Optional 3:1 speed reducer installed for $200 more
$1595.00, plus shipping
With its longer needlebar stroke (36mm), higher presser foot lift (16mm) and double-tension mechanism, the CB-1541s offers excellent sewing capabilities and responsiveness.
The machine's rectangular feeding motion guarantees consistent feeding of materials of all thicknesses without stitch gathering.
There is a built in bobbin winder mechanism and the amount of alternating foot lift can be varied between 2.5 and 6.5mm via a knob on top of the head. In addition, the ratio between alternating vertical travel of the walking foot and presser foot remains unchanged even when the material thickness changes.
The horizontal axis hook takes double capacity M style bobbins. The hook and hook timing is protected by a safety clutch that disengages the hook from its drive shaft if a thread jam occurs around the hook. If the clutch trips, you will have to unthread the needle, then clear out the jammed thread, then press a button on the bed while rotating the hand wheel in the normal direction until the clutch re-engages the hook drive.
The Cowboy CB-1541s comes assembled on a 20" x 48" table, with a powerful servo motor (with a 2" pulley) and flexible lamp. [View the assembled machine]
† The maximum thickness that can be sewn varies with the density of the material and sizes of the thread and needle. It takes much more foot pressure to hold down very dense material, like veg-tan leather. Larger thread and needle sizes increase the required foot pressure and top thread tension. Hard leather could be limited to 20 ounces or less on this machine.
